URC100022-T wallbox charger, rated power 22kW, adopts high integration design scheme, IP65 protection level, with ultra-thin design, exquisite and elegant appearance; Separate fan cooling heat dissipation solution, highly efficient and ultra quiet； Supports Plug & Charge, reserved charging mode , timed charging and other types of charging; Wide DC output voltage range from 200V-1000V, meets the requirements most of EV models; compatible with three-phase input. Application scenario: private area: personal residence, closed large villa area; public area: charging station at shopping center, industrial parks, scenic spots, hotels and other destinations.
| Rated voltage | 380VAC (260~485V)/220V (176~275V) |
| Frequency | 55±10Hz |
| THD | ≤5% |
| Power factor | ≥ 0.99@Rated power |
| Max. input current | 42A |
| Leakage current | 3.5mA |
| Undervoltage protection | Support |
| Overvoltage protection | Support |
| Power limitation | Support |
| Rated output power | 22kW |
| Constant power voltage range | 300V~1000V |
| DC voltage range | 200V~1000V |
| Maximum output current | 73.3A |
| Over voltage protection | Support |
| Under voltage alarm | Support |
| Short circuit protection | Support |
| Voltage stabilized accuracy | ≤±0.5% |
| Current stabilizing accuracy | ≤±1% |
| Max. startup overshoot | ≤5% |
| Voltage ripple | ≤1% (peak-to-peak value) |
| Current ripple | ≤1A (peak-to-peak value) |
| Efficiency | Highest efficiency≥94%, rated efficiency>95% |
| Display | LCD |
| Communication interface | 4G/RJ45/RS485/Bluetooth |
| Alarm | LED |
| Charging mode | Plug and charge (VIN code) / reserved charging / timed charging, etc |
| Operating temperature | -40℃~75℃ |
| Storage temperature | - 40°C~85°C |
| Humidity | ≤95% RH, without condensation |
| Altitude | 2000m |
| Noise | <55dB |
| Cooling mode | Independent airduct cooling |
| IP level | IP65 |
| Dimension | 380mm (W) *655mm (H) *145mm (D) |
| Weight | <47kg |

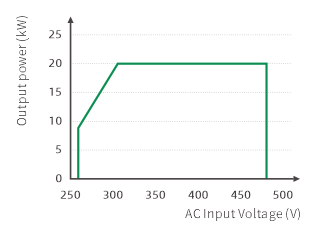

AC Input Curtailment Curve

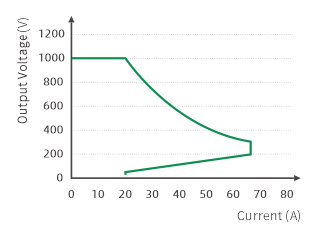

Output External Characteristics

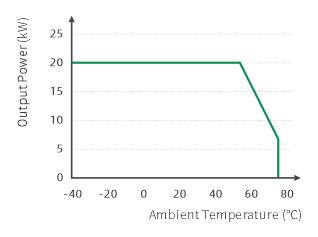

Temperature Characteristic Curve
Application
