UR100040-SW charging module adopts the world's leading power technology specially designed for the power conversion equipment of EV charging, with an ultra wide constant power output voltage range. It has the characteristics of active power factor correction, high efficiency, high reliability, intelligent control and attractive appearance; The module adopts intelligent air-cooled heat dissipation technique, with high power density and small space occupation; It has the functions of hot plug and battery back filling protection.
| Input voltage | 260VAC~485VAC |
| Input frequency | 55±10Hz |
| THD | ≤5% |
| Power factor | Rated output load PF ≥ 0.99 |
| Max. input current | <60A |
| Input under voltage protection | 255±5V |
| Input over voltage protection | 490±5V |
| Input Power Derating | 260±5V |
| Rated output | 1000V/40A |
| Constant power voltage range | 40kW (300V~1000V) |
| Output voltage range | 150V~1000V |
| Output current range | 0~133.3A |
| Output over voltage protection | 1010±5V |
| Output under voltage alarm Constant | 140±2V |
| Short circuit protection | Short circuit retraction constant current output is adopted in case of short circuit, which can be recovered automatically |
| Voltage stabilized accuracy | ≤±0.5% |
| Load sharing | ≤±3% |
| Max. startup overshoot | ≤±1% |
| Current stabilized accuracy | ≤±1% |
| Startup time | 3s≤t≤8s |
| Efficiency | Highest efficiency>96%, rated efficiency>95% |
| Communication | CAN |
| Max. Number of parallel machines | 60pcs |
| Alarm and status | CAN bus communication LED display |
| Operating temperature | -40℃~75℃,derates from 55℃ |
| Overtemperature protection | On temperature >75°C±4°C or <-40°C±4°C, module will shut down automatically |
| Storage temperature | - 40°C~85°C |
| Humidity | ≤95% RH, without condensation |
| Atmospheric pressure/ Altitude | 79kPa~106kPa/2000m |
| Acoustic Noise | ＜65dB |
| Cooling | Fan cooling |
| Dimension | 336mm (W) *84mm (H) *438mm (D) |
| Weight | <15.5kg |

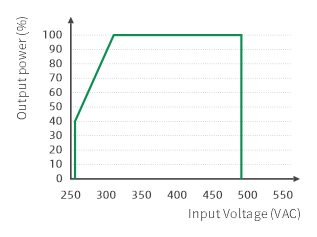

AC Input Curtailment Curve

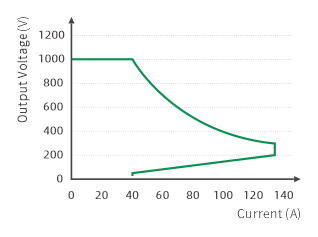

Output External Characteristics

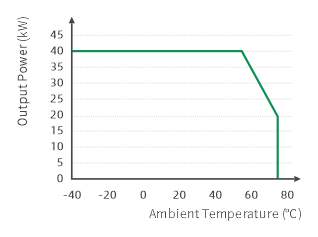

Temperature Characteristic Curve
Application
