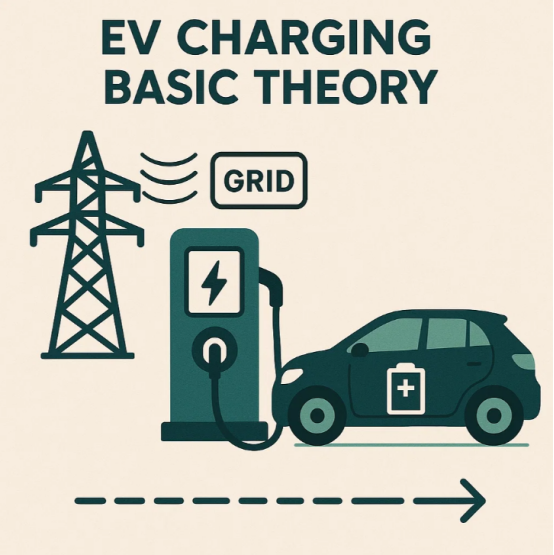

What is EV charging basic theory?

Electric vehicles (EVs) are transforming transportation, and understanding charging fundamentals—from technical principles to infrastructural, regulatory, and environmental considerations—is essential for stakeholders across the ecosystem. At the core of every EV charging system lie two critical components: the ACDC charging module, which converts grid-supplied alternating current (AC) into battery-ready direct current (DC), and the DCDC charging module, which regulates onboard voltages for vehicle subsystems. This article examines EV charging theory through these pivotal modules and their role in enabling efficient, scalable charging solutions.

Energy Conversion: AC vs. DC Perspectives

EV charging begins with energy conversion. In level-1 and level-2 systems, the ACDC charging module takes household or commercial AC input and transforms it into controlled DC output for battery storage. Its design must balance efficiency, thermal management, and power density. Fast-charging stations often bypass onboard converters, using high-power external ACDC charging modules to deliver DC directly to the battery pack. Once inside the vehicle, the DCDC charging module steps high-voltage DC down to 12V or 48V rails, powering lights, infotainment, and control electronics. Efficient DCDC charging module designs reduce conversion losses, contributing to extended driving range and lower operating costs.

Infrastructure and Installation Challenges

Deploying EV chargers requires careful planning of electrical infrastructure. Grid compatibility, site selection, and load balancing are critical considerations. ACDC charging module units must comply with local voltage standards and networking protocols for demand response. For public fast-charging hubs, multiple ACDC charging module racks are synchronized to share grid capacity without overloading transformers. In parallel, integrated DCDC charging module solutions simplify vehicle-side installation by offering plug-and-play form factors. The UR100030-DD（EU） power module from UUGreenPower exemplifies this approach by combining high-voltage conversion, backflow protection, and residual voltage relief in a compact footprint.

Safety, Standards, and Compliance

Safety is paramount in EV charging systems. International standards such as IEC 61851 and UL 2202 govern performance, insulation, and protection requirements for ACDC charging module designs. Built-in safeguards—like overcurrent protection, galvanic isolation, and temperature monitoring—prevent hazards. DCDC charging module units must also adhere to ISO 26262 functional safety guidelines to ensure reliable operation during driving. Certifications for electromagnetic compatibility (EMC) and environmental robustness (e.g., IP67 ingress protection) further validate product reliability.

Environmental and Economic Impacts

The environmental footprint of EV charging depends on energy sources and system efficiency. High-efficiency ACDC charging module architectures minimize grid losses, while smart charging algorithms shift loads to periods of low-carbon energy availability. Onboard DCDC charging module efficiency impacts parasitic battery drain during vehicle operation. Advances in wide-bandgap semiconductors—SiC and GaN—enable smaller, cooler-running modules that conserve resources and reduce material costs. Economically, improved module density lowers capital expenditures for charging networks and reduces total cost of ownership (TCO) for EV users by cutting energy expenses and maintenance downtime.

Integration with Smart Grids and Future Trends

The future evolution of electric vehicle (EV) charging infrastructure is intrinsically linked to advanced digital integration. Networked ACDC charging module platforms will form the backbone, enabling critical bidirectional vehicle-to-grid (V2G) services. This allows EVs to act as distributed energy resources, actively feeding power back into the grid to stabilize it during peak demand periods. Concurrently, sophisticated intelligent DCDC charging module controllers will seamlessly communicate with broader energy management systems. This communication enables the optimization of in-vehicle power loads for efficiency and crucially facilitates vehicle-to-home (V2H) power supply, allowing EVs to power residences, especially during outages or high-cost periods. Furthermore, the adoption of modular, software-defined hardware architectures is essential. This design paradigm allows for over-the-air (OTA) firmware and feature updates and empowers predictive maintenance capabilities, enhancing system reliability and longevity while reducing operational costs.

Conclusion

EV charging fundamentally relies on efficient energy conversion. The ACDC charging module transforms grid AC power into battery-ready DC, enabling charging from basic home setups to fast public stations. Simultaneously, the DCDC charging module regulates onboard voltage to power vehicle subsystems safely and efficiently. Together, these critical modules form the technical bedrock, ensuring safe, compliant, and increasingly intelligent charging. Their continuous advancement drives down costs, minimizes environmental impact, and paves the way for smart grid and V2G integration.
