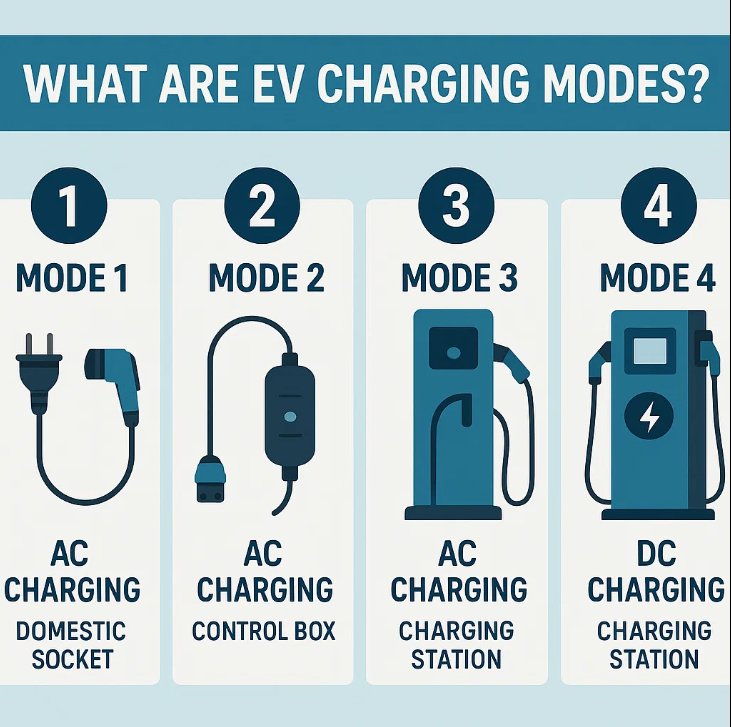

What are EV charging modes?

Electric vehicles are transforming the automotive landscape, and understanding charging standards – particularly the fundamental EV charging modes – is essential for deploying reliable infrastructure. At the heart of every charging station lies critical power electronics: an EV charging module governs the energy conversion process, while an EV charger power module ensures stable power delivery to the vehicle's battery. Mastering the different EV charging module is key for stakeholders. These modes define the safety protocols, communication methods, and power levels used between the vehicle, the charging station, and the grid. Understanding these modes allows for optimizing system performance, reducing costs, and improving user satisfaction across diverse charging environments, from residential setups to public fast-charging stations.

AC Charging Modes: Mode 1 and Mode 2

In the earliest EV deployments, Mode 1 charging simply plugged the vehicle into a standard household outlet without additional safety features. This approach was limited by the lack of communication between the car and the supply, making it unsuitable for widespread adoption. Mode 2 improved on this concept by integrating an in-cable control and protection device that monitors current, voltage, and earth continuity. Both Mode 1 and Mode 2 rely on the vehicle’s onboard ev charging module to convert alternating current into the direct current needed by the battery. While these modes deliver modest power rates—typically between 2 kW and 3 kW—they remain popular for overnight residential charging and emergency top-ups.

Dedicated AC Stations in Mode 3

Mode 3 charging introduces purpose-built EV supply equipment that delivers higher power levels and advanced safety features. These stations incorporate an ev charger power module directly within their housing to manage ground fault detection, overcurrent protection, and pilot signaling with the vehicle. Available in single-phase and three-phase configurations, Mode 3 supports single-phase (7 kW) or three-phase (up to 22 kW in residential settings, or 43 kW in commercial installations). Communication protocols enable load balancing, remote monitoring, and integration with energy management systems, ensuring efficient use of grid resources. Commercial facilities, workplaces, and public parking areas benefit from Mode 3 installations by providing faster charging and enhanced user convenience compared to basic home chargers.

Ultra-Fast DC Charging in Mode 4

For rapid replenishment of battery capacity, Mode 4 charging bypasses the onboard AC-to-DC converter and delivers high-voltage direct current directly to the battery pack. This enables power outputs starting at 50 kW and scaling up to 350 kW or more, dramatically reducing charging times. Advanced super wide constant power charging modules exemplify world-leading design in Mode 4 applications. Leveraging innovative power electronic control techniques, these modules achieve exceptional power density and efficiency across a super wide voltage range. Robust thermal management and wide operating temperature tolerance simplify system integration, while comprehensive built-in protections guard against overvoltage, overcurrent, and residual voltage hazards. By incorporating an optimized EV charger power module architecture, fast-charging stations can support high throughput and minimal downtime for EV fleets and long-distance travelers alike.

An Overview of Electrified Vehicle Charging Options

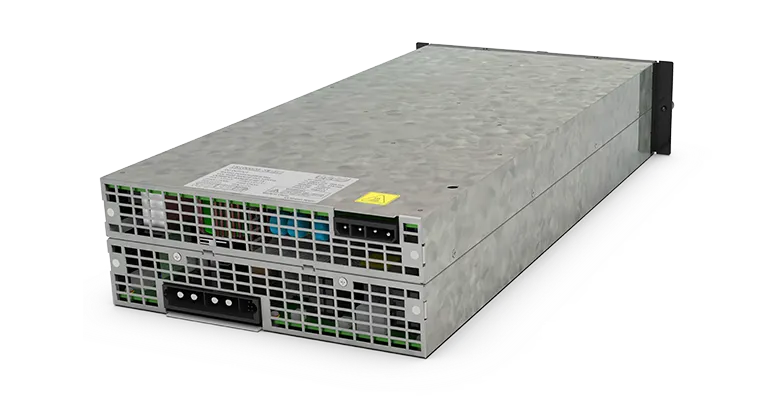

Consideration of the application's context, power requirements, safety norms, and climatic circumstances is essential when choosing an optimum charging system.  Commercial operators typically choose scalability, network connectivity, and load-balancing features in an ev charger power module, whereas residential customers may favor reliability and compactness. For fast-charging hubs to keep producing the same amount of power even when used at full capacity, high-performance modules such as the UR100020SW are essential. To guarantee compatibility and durability throughout time, products must adhere to international standards.  Furthermore, new innovations such as smart-charging algorithms and vehicle-to-grid (V2G) connectivity will impact the design of future modules, paving the way for two-way energy flow and adaptive grid assistance.

Conclusion

A clear grasp of EV charging modes empowers manufacturers, infrastructure developers, and end users to make informed decisions that enhance performance, safety, and user experience. From modest AC charging in Modes 1 and 2 to dedicated Mode 3 stations and ultra-fast Mode 4 solutions, each mode relies on specialized components—namely the ev charging module and the ev charger power module—to deliver precise power control and protection. UUGreenPower’s continuous innovation, exemplified by the UR100020SW super wide constant power charging module, underscores the company’s commitment to advancing EV charging technology. As the EV ecosystem evolves, these core modules will remain fundamental to accelerating the global transition to sustainable transpor.
